A-A-434C
April 1, 1983
Superseding
A-A-434B
October 15, 1981
COMMERCIAL ITEM DESCRIPTION

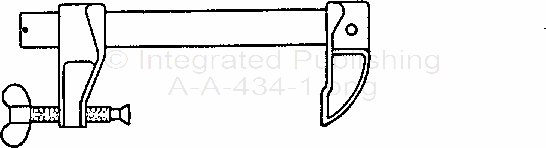

CLAMP, SCREW, QUICK-ADJUSTING, SLIDING HEAD
The General Services Administration has authorized the use of this
Commercial Item Description in preference to Type III, Class B of Federal
Specification GGG-C-406.
Salient characteristics:
Bar: 1 in. x 5/16 in. (minimum); round-edge carbon spring steel, without notches or other deformity.
Sliding head: Easily movable, with suitable looking device at any point. Designed to receive bar and screw.
Screw: Steel, threads smoothly cut and designes for load intended.
Swivel: Steel or malleable iron, securely fastened, revolves freely.
Fixed Jaw: The fixed jaw shall be securely attached tp one end of the bar.
Handle: Wing-nut or sliding pin type.
Load limit: Normal load limit, 1800 lbs., (minimum).
|
Size of clamp (minimum) (inches) |
Distance from axis of screw to edge of bar + 10% (inches) |
National Stock Number |
|
6 |
2 |
5120-00-222-1401 |
|
8 |
2 |
5120-00-222-1402 |
|
10 |
2-3/4 |
5120-00-720-1879 |
|
12 |
2-3/4 |
5120-00-222-1403 |
|
18 |
2-3/4 |
5120-00-22-1404 |
