A-A-2566A

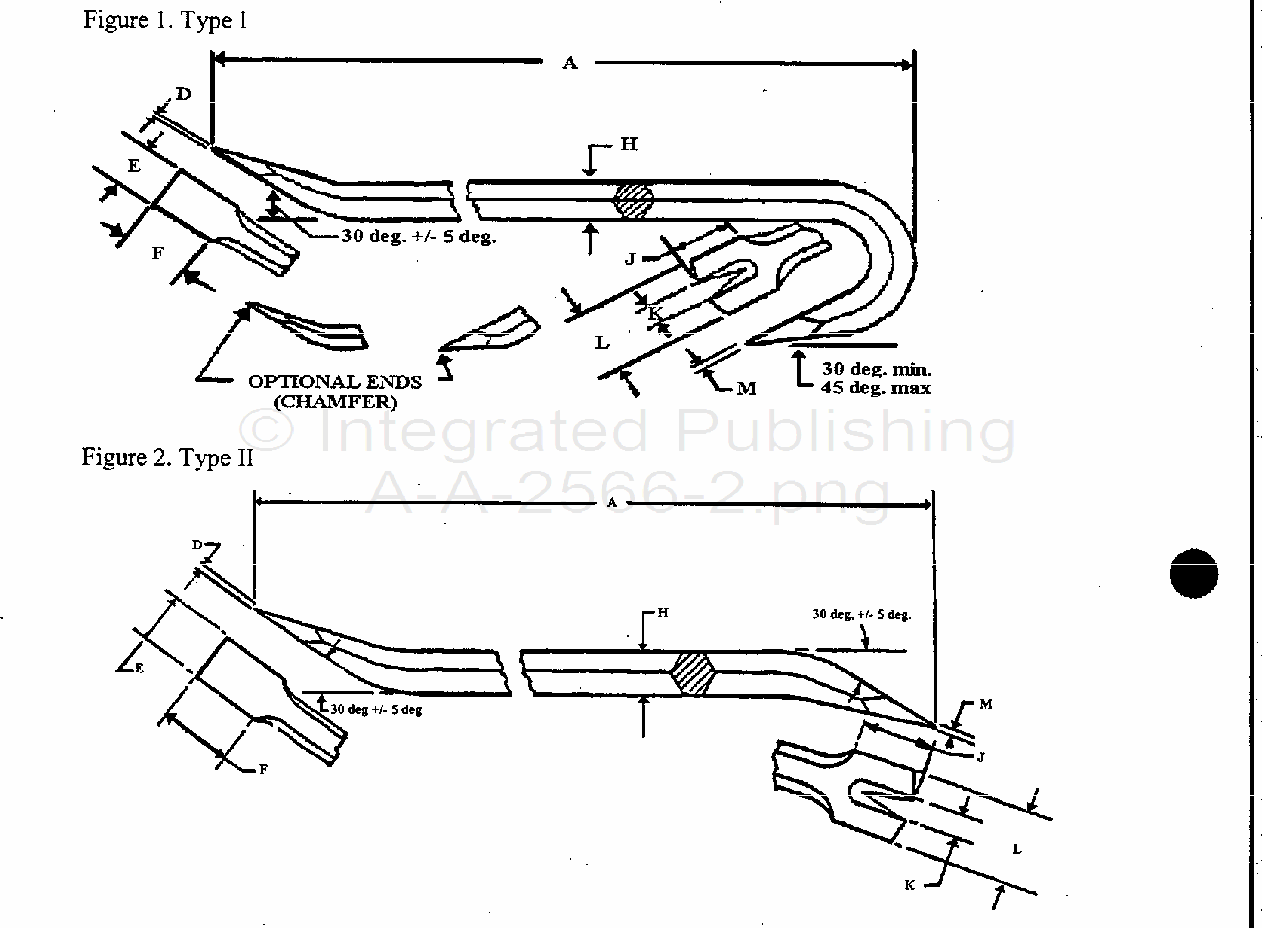

3.1.5 Finish. The bars shall be free from burrs, roughness, and excessive oxide scale. The body of the bars shall either be painted, or have an oil coated natural finish. The work ends of the bars shall have a satin finish with either an oil or phosphate coating.
|
|
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
|
1 |
Size number |
A |
D |
E |
F |
H |
J |
K |
L |
M |
Test load. |
Load distance from end. |
|
2 |
Type I |
(+/-)1.0 (inches) |
(+/-11/32) (inch) |
(+)1/8 (-)1/16 (inch |
(+/-)1/8 (inch) |
Min. (inch) |
Min. (inch) |
(+/-)1/16 (inch) |
Min. (inch) |
(+/-) 1/32 (inch)_ |
(pounds) |
(inches) |
|
3 |
1 |
12 |
1/16 |
3/4 |
1 |
1/2 |
3/4 |
1/4 |
1-1/16 |
1/16 |
150 |
8 |
|
4 |
2 |
18 |
1/16 |
15/16 |
1-1/8 |
5/8 |
1 |
5/16 |
1-1/8 |
1/16 |
150 |
14 |
|
5 |
3 |
24 |
1/16 |
1 |
1-3/8 |
3/4 |
1-5/16 |
7/16 |
1-3/16 |
1/16 |
125 |
20 |
|
6 |
4 |
30 |
1/16 |
1 |
1-3/8 |
3/4 |
1-5/16 |
7/16 |
1-3/16 |
1/16 |
100 |
26 |
|
7 |
5 |
36 |
1/16 |
1 |
1-3/8 |
3/4 |
1-5/16 |
7/16 |
1-3/16 |
1/16 |
75 |
32 |
|
8 |
Type II |
|
|
|
|
|
|
|
|
|
|
|
|
9 |
4 |
30 |
1/16 |
1 |
1-3/8 |
3/4 |
1-5/16 |
7/16 |
1-3/16 |
1/16 |
100 |
26 |
