October 16, 1979
COMMERCIAL ITEM DESCRIPTION
RIVETER, YOKE, HAND (RIVET SQUEEZER, HAND)
The General Services Administration has authorized the use of this
Commercial Item Description in lieu of Military Specification MIL-R-937.
This commercial item description covers a deep throat hand yoke riveter with interchangeable dies for the setting of 100o countersunk (MS 20426) and universal head (MS 20470) aluminum alloy rivets and dimpling of sheet aluminum alloy.
Salient characteristics:
Material. Alloy steel. Die surfaces must be polished. All other riveter surfaces shall have a rust resistant finish. Consists of yoke, handle assembly and interchangeable dies (one flush die, three universal head cup type dies, and three dimpling dies-and-punches for 3/32, 1/8 and 5/32 diameter rivets

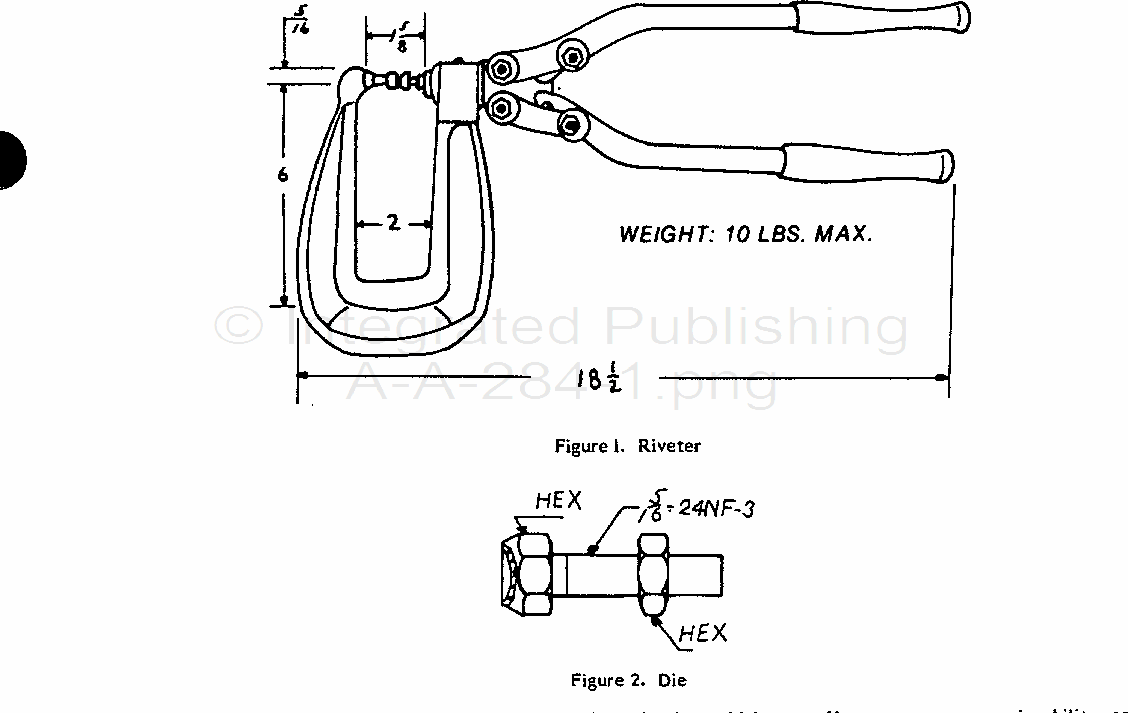

Design. Similar to figure 1 Dimensions shown are nominal. Dies shall be similar to figure 2.
[IMAGE HERE]
Workmanship. All riveters shall be free from imperfections which may affect appearance, serviceability, or durability.
Certification. The contractor shall certify that the product offered meets the salient characteristics of this commercial item description and that the product conforms to the producer’s own drawing, specifications, standards, and quality assurance practices and is the same product offered for sale in the commercial market. The Government reserves the right to require proof of such conformance prior to first delivery and thereafter as may be otherwise provided for under the provisions of the contract.
