A-A-539
November 7, 1979
COMMERCIAL ITEM DESCRIPTION
INSTALLING TOOL SET, O-RING
The General Services Administration has authorized the use of this
Commercial Item Description
This commercial item description covers a tool set designed to install TPE and elastomeric O-rings and seals over male tube fittings conforming to MS 3365 without damage to or discoloration of the ring or seal.
Salient characteristics:
The set shall consist of 13 different sized installing tools, furnished in a substantially constructed case of metal, wood, or plastic with a compartment for each of the 13 installing tools. The case shall have a cover with a positive latch.
The installing tool shall be:

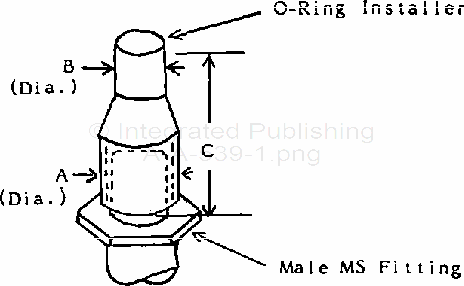

Similar to figure 1
In dimensions listed in table I. The bored internal length shall be sufficient to completely cover the threads of the MS fitting.
Fabricated from a high density polyurethane or similar material which will withstand repeated test drops. Random sample installing tools shall be subjected to six drops from a height of 3 feet onto a concrete floor without any nicks or other surface damage which may damage the O-ring.
TABLE I. Installing tool sizes and dimensions
|
Size |
A Maximum |
B Maximum |
C Nominal |
|
(inches) |
(inches) |
(inches) |
(inches) |
|
1/8 |
0.415 |
0.225 |
1-7/16 |
|
3/16 |
0.490 |
0.315 |
1-1/2 |
|
1/4 |
0.565 |
0.359 |
1-5/8 |
|
5/16 |
0.630 |
0.421 |
1-5/8 |
|
3/8 |
0.690 |
0.476 |
1-11/16 |
|
1/2 |
0.880 |
0.654 |
1-13/16 |
|
5/8 |
0.985 |
0.767 |
2 |
|
3/4 |
1.190 |
0.938 |
2-3/16 |
|
1 |
1.465 |
1.188 |
2-1/4 |
|
1-1/4 |
1.765 |
1.500 |
2-5/16 |
|
1-1/2 |
2.015 |
1.750 |
2-7/16 |
|
1-3/4 |
2.375 |
2.090 |
2-5/8 |
|
2 |
2.615 |
2.340 |
2-3/4 |
Workmanship. The outer surface of the installing tool that makes contact with the O-ring shall be free of any imperfection that may scratch or cut the surface of the O-ring.
