MS90387H

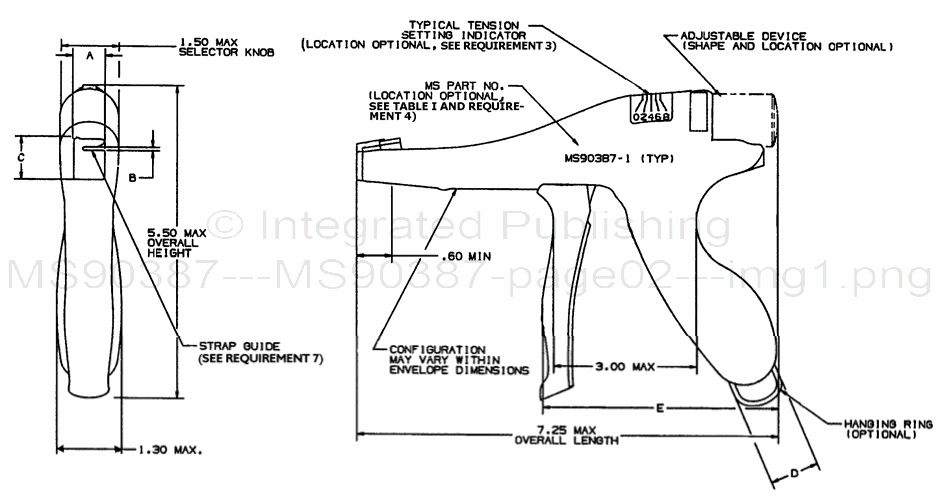

FIGURE 2. Ergonomic tool dimensions and configuration.
TABLE I. Figure 1 and 2 dimensions.
MS Part number |
Figure |
A Max |
B Min |
B Max |
C Max |
D Max 1I |
E Max |
Instruction field color |
MS90387-1 |
1 or 2 |
.65 |
.055 |
.065 |
1.00 |
NIA |
4.63 |
Black |
MS90387-2 |
1 or 2 |
.85 |
.083 |
.090 |
1.34 |
1.20 |
4.63 |
Red |
MS90387-3 |
1 |
1.16 |
.015 |
.045 |
1.48 |
1.20 |
4.63 |
Blue |
MS90387-4 |
1 |
.85 |
.090 |
.100 |
1.34 |
1.20 |
4.63 |
Blue |
MS90387-5 |
1 |
.65 |
.055 |
.065 |
1.00 |
NIA |
3.00 |
Black |
1I NIA - Not applicable
2
